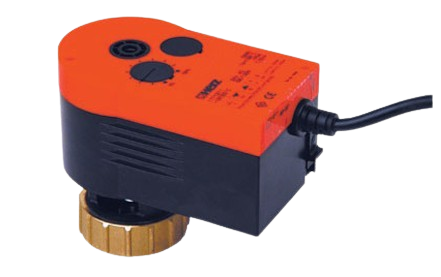

HERZ – Actuator of Three-way valves
HERZ – Actuator of Three-way valves
| Code | Description |
|---|---|
| 1771211 | Actuation of three-way valves 24 V |
| 1771250 | Actuation of three-way valves 230 V |
| 1771251 | Actuation of three-way valves 24 V |
SKU: 1771211
Details
| Code | Running Time | Stroke | Pushing Force | Weight | Max. Operating Temperature | Ambient Temperature | Ambient Humidity | Degree of Protection |
|---|---|---|---|---|---|---|---|---|
| 1771211 | 60 / 120 s | 8 mm | 500 N | 0.7 kg | IP 54 (EN 60529) | |||
| 1771250 / 1771251 | 120 s | 8 mm | 500 N | 0.7 kg | 100 °C on valve body | -10 to 55 °C | 5 to 95% r.F. | IP 54 (EN 60529) |
