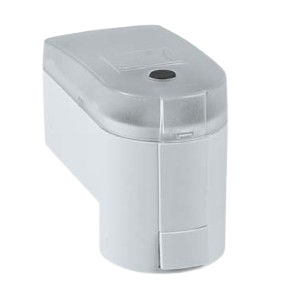

HERZ – Actuator drives and Modulating
HERZ – Actuator drives and Modulating
| Code | Description |
|---|---|
| 1770842 | HERZ Motor Valve Drive, modulating 0..10 V, M28 x 1.5, 24 V, 50 Hz |
| 1770846 | HERZ Motor Valve Drive, modulating 0..10 V, M28 x 1.5, 24 V, 50 Hz (stroke recognition and feedback signal) |
SKU: 1770842
Details
| Order Number | Control Type | Connection | Stroke | Closing Force | Dimensions (W x H x D) | Notes |
|---|---|---|---|---|---|---|
| 1770840 | 3-point | M 28 x 1.5 | 8.5 mm | 200 N | 45 x 65 x 90 mm | 24 V / AC |
| 1770841 | 3-point | M 28 x 1.5 | 8.5 mm | 200 N | 45 x 65 x 90 mm | 230 V / AC |
| 1770842 | DDC 0–10 V | M 28 x 1.5 | 8.5 mm | 200 N | 45 x 65 x 90 mm | 24 V / AC |
| 1770846 | DDC 0–10 V | M 28 x 1.5 | 8.5 mm | 200 N | 45 x 65 x 90 mm | With valve stroke detection and feedback channel 24 V / AC |
