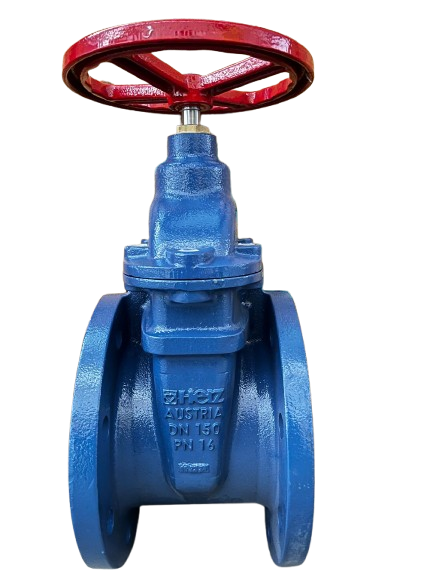

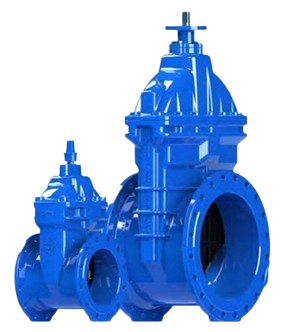

HERZ Gate valve Ductile flanged version
HERZ Gate valve Ductile flanged version
| Code | Description |
|---|---|
| 4411371 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 65 |
| 4411372 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 80 |
| 4411373 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 100 |
| 4411374 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 125 |
| 4411375 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 150 |
| 4411376 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 200 |
| 4411377 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 250 |
| 4411378 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 300 |
| 4411379 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 350 |
| 4411380 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 400 |
| 4411381 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 450 |
| 4411382 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 500 |
| 4411383 | HERZ- WRAS Ductile Iron Gate Valve Flanged Ends PN16 DN 600 |
SKU: 4411371
Details
| Temperature range | -10°C … +80°C |
| Pressure rate | PN16 |
| Flange Dimensions | According to EN1092-2 |
| Design standard | BS 5163; EN1074-2; BS 1171 |
| Coating | 250 μm epoxy coated |
Application
For hot and cold water systems for fluids excluding acid and flammable fluids.
The use of ethylene or propylene glycol in a mixing ratio 25-50% is allowed.
