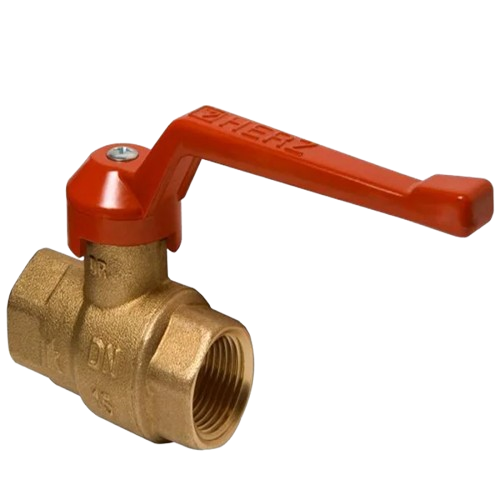

HERZ Ball Valves – Short Spindle thread type
HERZ Ball Valves – Short Spindle thread type
Products
| Code | Description |
|---|---|
| 1219001 | HERZ-Ball Valve DZR Body WRAS approved short spindle PN 50, DN 15 |
| 1219002 | HERZ-Ball Valve DZR Body WRAS approved short spindle PN 50, DN 20 |
| 1219003 | HERZ-Ball Valve DZR Body WRAS approved short spindle PN 50, DN 25 |
| 1219004 | HERZ-Ball Valve DZR Body WRAS approved short spindle PN 40, DN 32 |
| 1219005 | HERZ-Ball Valve DZR Body WRAS approved short spindle PN 40, DN 40 |
| 1219006 | HERZ-Ball Valve DZR Body WRAS approved short spindle PN 40, DN 50 |
SKU: 1219001
Details
Material and Construction
| Component | Material / Standard |
|---|---|
| Body | Forged brass acc. to EN 12165, CW602N DZR |
| Ball | Forged brass acc. to EN 12165, hollow, full bore, hard chrome plated, CW617N |
| Spindle | Machined brass acc. to EN 12164, CW614N |
| Handles | Lever handle, red, silumin |
| Ball seals | PTFE |
| Spindle seals | PTFE |
| Internal threaded connectors | Acc. to ISO 228 |
Operating Data
| Parameter | Value |
|---|---|
| Max. operating pressure | See table above |
| Min. operating temperature | -30°C (water 0.5°C) |
| Max. operating temperature | 150°C (water 110°C – no steam) |
| Construction and tests | WRAS approved |
