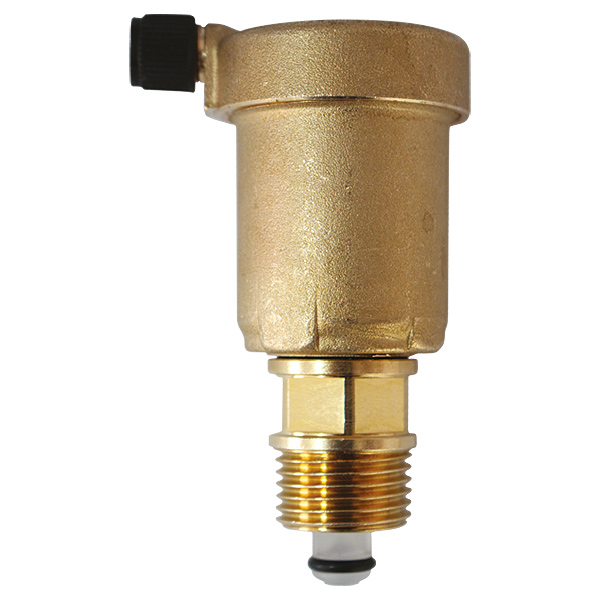

Automatic Air vent
Automatic Air vent
| Code | Description |
|---|---|
| 1263001 | HERZ-Air Release Valve Automatic Air Vent PN 10 Dim 15 |
| 1263003 | HERZ-Air Release Valve Automatic Air Vent PN 10 Dim 20 |
SKU: 1263001
Details
| Parameter | Specification / Notes |
|---|---|
| Material | |
| Housing | Forged brass acc. to EN 12165, CW617N |
| Lid | Forged brass acc. to EN 12165, CW617N |
| Sealing | NBR (1263000X), EPDM (1263001X) |
| Cover Cap | Polypropylene, black (1263000X), ABS, red (1263001X) |
| Float Ball | Polypropylene |
| Backflow Preventer Housing | Machined brass acc. to EN 12165, CW617N (1263000(01), 1263001(XX)) |
| Adapter Housing | Machined brass acc. to EN 12165, CW617N (12630003) |
| External Threaded Connectors | Acc. to ISO 228 |
| Operation | |
| Max. Structural Pressure | 12 bar (1263000X), 10 bar (1263001X) |
| Max. Operating Pressure | 8 bar (1263000X), 10 bar (1263001X) |
| Min. Operating Temperature | 0°C |
| Max. Operating Temperature | 110°C (no steam) |
